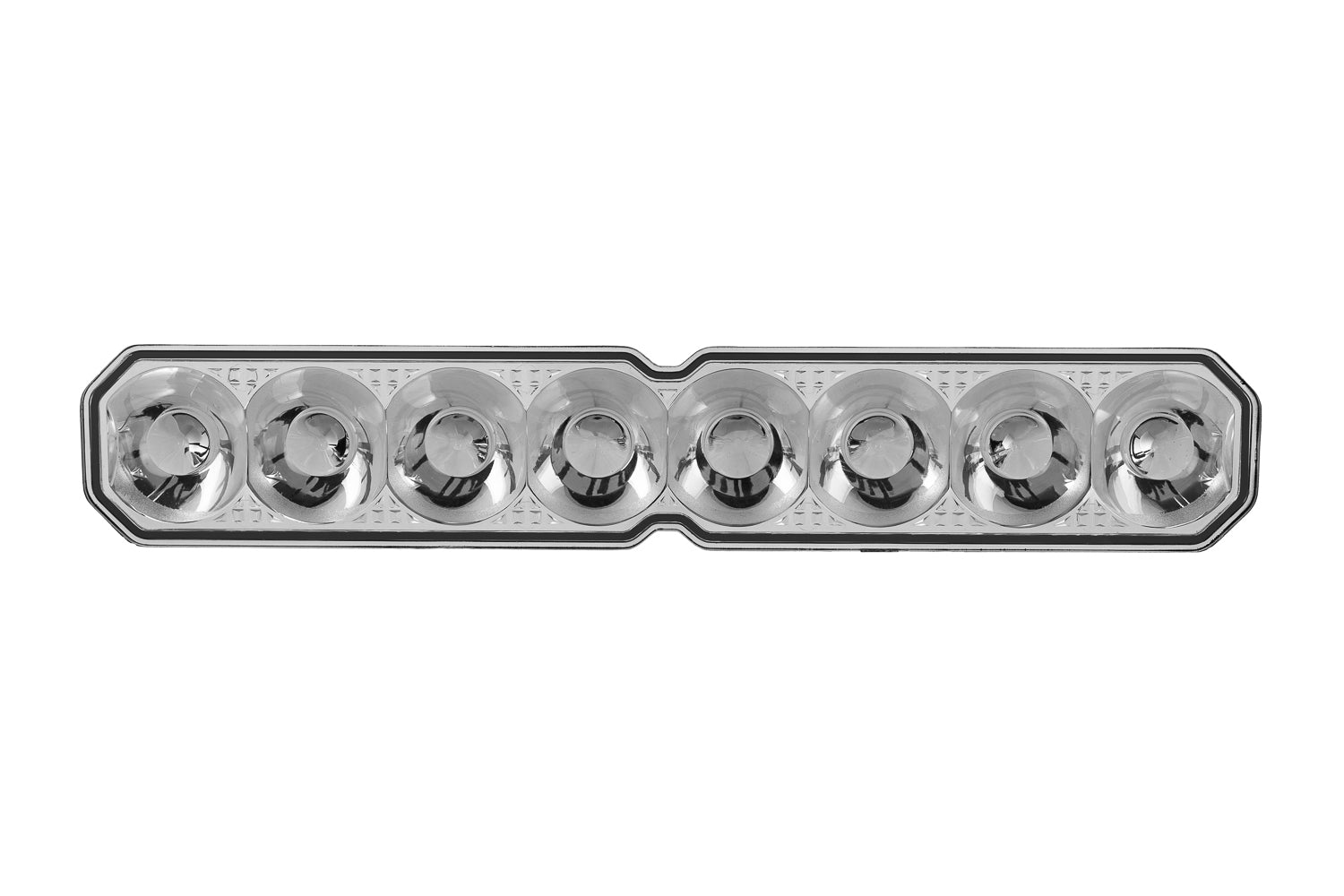

Diode Dynamics - SS10 Lens Spot Clear - DD8646

Features

x000D
• Replacement lens for Stage Series LED Light Bars
x000D
• Made out of durable polycarbonate, with preinstalled o-ring seal
x000D
• Advanced TIR optics provide high efficiency and focus
x000D
• Available in SAE Driving, Flood, Combo/Driving, or Spot beam patterns
x000D

Overview. This lens is a direct replacement for the original lenses in your Stage Series LED Light Bars. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal.

Colors. Stage Series LED Light Bars use the same high-output Cool White LED chips for both white and yellow configurations. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

You might be wondering - if you have a multicolor backlight, how does that work with a yellow lens? Don’t worry. Our engineers included a small toggle switch on each circuit board. When swapping out a lens, you can configure that section to be either white or yellow, which will ensure the backlight functions according to the selected lens color.

Easy Swap. Changing the lenses on the Stage Series LED Light Bars takes just a few minutes! Remove the silver torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the torx-head screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern!

Warranty. Diode Dynamics Stage Series LED lighting comes with a Limited Lifetime Warranty. If you choose to disassemble and replace the lens on your Stage Series LED Light Bar, you still keep your Limited Lifetime Warranty intact. However, we may require the light to be sent in for any service and repair, rather than immediate replacement.
